| Power supplies NT | ||||

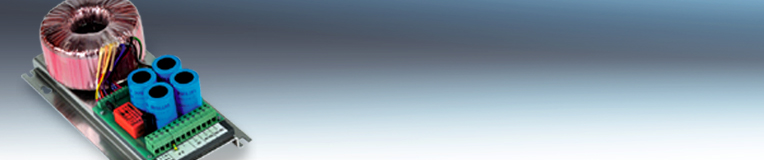

| Features of STÖGRA power supplies: | ||||
 |
open (IP00), power supply (no switched mode), mounted on an aluminium plate | |||
|
|
easy mountage into a switch cabinet | |||
|
|
including isolated transformer, bridge rectifier, capacitors,
limitation of power-on current, fuses, EMC-mains filter |
|||
|
|
input 230 VAC / 50-60Hz – alternatively available is 115VAC / 50-60Hz | |||
|
|
all connections via screw terminals | |||
|
|
very robust (unbeatable regarding long life) and optimal for stepper motor systems, where switched-mode power supplies may create problems |
|||
| There are available versions with nominal
power of 350VA, 500VA and 1000VA. Available output voltages are 24 VDC, 36 VDC, 60 VDC, 85 VDC and 120 VDC. |
||||
